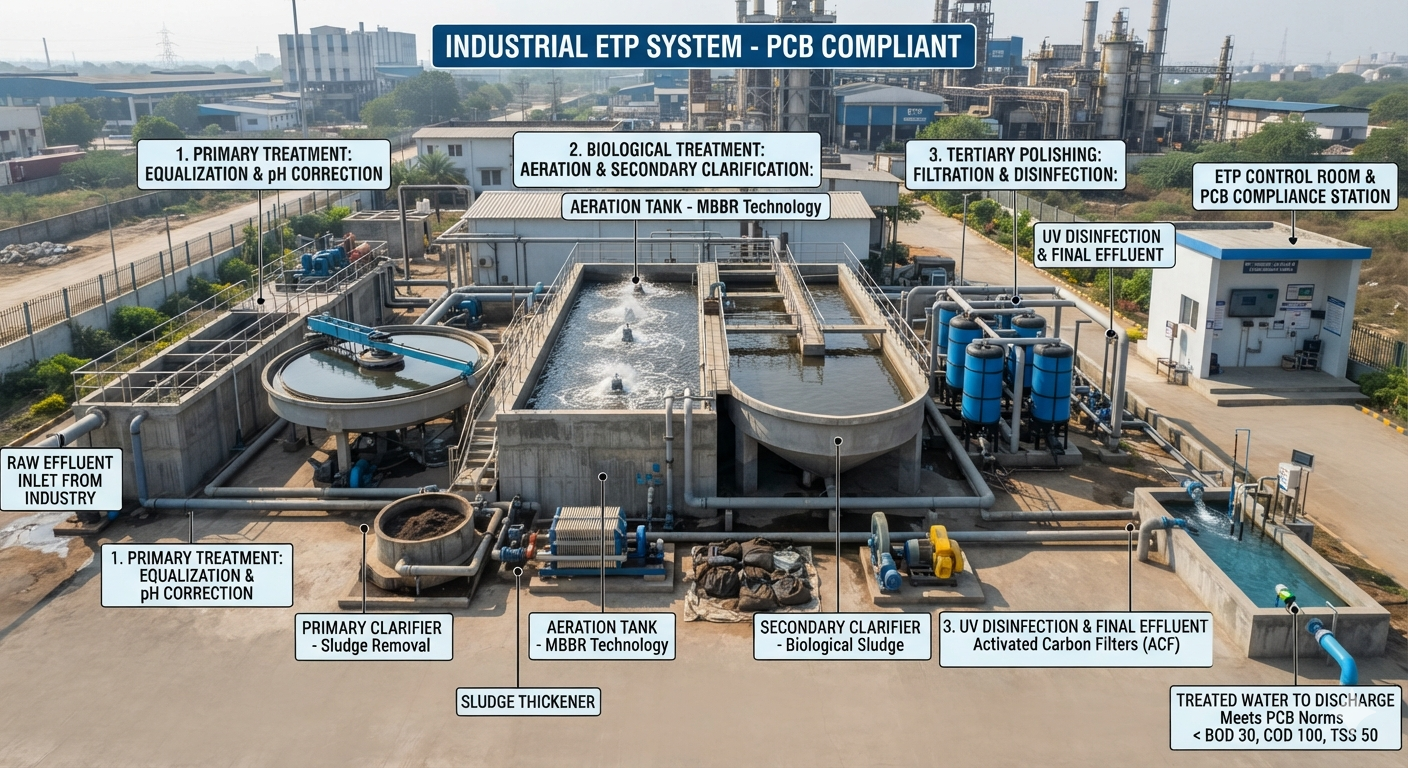

Effluent Treatment Plant (ETP)
Complete ETP systems for industrial effluent treatment including primary clarification, biological treatment, and tertiary polishing to meet PCB discharge norms.
Key Features
- Custom-designed physical-chemical treatment
- Advanced biological oxidation
- Integrated tertiary polishing units
Applications
- Textile and dyeing industries
- Pharmaceutical manufacturing
- Chemical and petrochemical plants
Benefits
- Strict compliance with PCB discharge norms
- Reduced operational costs
- High reliability and stability during shock loads
Specifications
- Capacity: 10 KLD to 5000 KLD
- Treatment Process: Physico-chemical + Biological
- Automation: Manual / Semi-Auto / PLC based
Sewage Treatment Plant (STP)
Modular STP systems using activated sludge, SBR, or MBBR processes for domestic and industrial sewage treatment with reuse-quality output.
Key Features
- Compact and modular footprint
- Odorless and low-noise operation
- Advanced nutrient removal (Nitrogen/Phosphorus)
Applications
- Residential complexes and townships
- Commercial buildings and IT parks
- Industrial domestic sewage
Benefits
- High quality treated water for landscaping/flushing
- Low power consumption
- Minimal sludge generation
Specifications
- Process options: MBBR, SBR, EA
- Capacity: 5 KLD to 10 MLD
- Material: RCC / Packaged FRP / MS Epoxy
Zero Liquid Discharge (ZLD)
Complete ZLD systems with MEE (Multi Effect Evaporator), agitated thin film dryer (ATFD), and crystallizers for zero effluent discharge compliance.
Key Features
- High-efficiency thermal evaporation
- Corrosion-resistant exotic metallurgy (Titanium, Duplex SS)
- Integrated RO reject handling
Applications
- High TDS industrial effluents
- Hazardous chemical wastewater
- Distilleries and tanneries
Benefits
- 100% water recovery and reuse
- Eliminates liquid discharge to environment
- Valuable salt/by-product recovery
Specifications
- Evaporation rate: 1 KL/hr to 50 KL/hr
- Heating medium: Steam / Thermic Fluid
- Process: Multiple Effect Evaporation / MVR
Membrane Bioreactor (MBR)
High-performance MBR systems combining biological treatment with ultra/microfiltration membranes for compact, high-quality treated water output.
Key Features
- Flat sheet or hollow fiber membrane modules
- High MLSS operation (8000-12000 mg/L)
- Automated membrane cleaning (CIP)
Applications
- Space-constrained retrofits
- High-strength industrial organics
- Direct reuse water production
Benefits
- Ultra-compact footprint (50% less than conventional)
- Consistently superior effluent quality (Turbidity < 1 NTU)
- Eliminates secondary clarifier
Specifications
- Pore size: 0.04 to 0.1 micron
- Flux rate: 15-25 LMH
- Module type: Submerged / External
Chemical Dosing Systems
Skid-mounted chemical dosing systems for coagulants, flocculants, pH correction, and disinfection in water and wastewater treatment.
Key Features
- Pre-piped and pre-wired skid packages
- Precision metering pumps (diaphragm/plunger)
- Integrated calibration columns and pulsation dampeners
Applications
- Coagulant and polymer dosing in clarifiers
- Acid/Alkali for pH neutralization
- Sodium hypochlorite for disinfection
Benefits
- Accurate chemical dosing reducing wastage
- Plug-and-play installation
- High operator safety
Specifications
- Dosing rate: 0-1000 LPH
- Pump types: Electronic / Motor Driven
- MOC: PVC, PP, SS316, PTFE
Aeration & Diffuser Systems
Fine bubble disc diffusers, coarse bubble aerators, surface aerators, and blowers for biological aeration in ETP/STP processes.
Key Features
- High oxygen transfer efficiency (OTE)
- Anti-clogging EPDM/Silicone membranes
- Retrievable grid systems available
Applications
- Aeration tanks in activated sludge process
- Equalization tank mixing
- Sludge holding tank aeration
Benefits
- Significant energy savings compared to surface aerators
- Uniform mixing without dead zones
- Long operational lifespan
Specifications
- Diffuser type: Fine bubble (disc/tube)
- Air flow: 2-8 m3/hr per diffuser
- Membrane material: EPDM / PTFE coated
Sludge Treatment Systems
Sludge thickeners, filter press, belt press, centrifuge dewatering, and solar drying beds for efficient sludge management and disposal.
Key Features
- High-pressure hydraulic closing (Filter Press)
- Automated cake discharge options
- Heavy-duty decanter centrifuges
Applications
- Primary chemical sludge dewatering
- Biological excess sludge management
- ZLD salt crystallization handling
Benefits
- Reduces sludge volume by up to 80%
- Lowers disposal and transportation costs
- Produces dry, easy-to-handle cake
Specifications
- Dewatering tech: Filter Press / Centrifuge / Volute
- Cake consistency: 20-35% dry solids
- Operation: Semi-Auto / Fully Automatic
Effluent Recycling & Reuse
Tertiary treatment systems with sand filters, activated carbon filters, UV, RO and UF for treated water recycling back into production processes.
Key Features
- Multi-barrier treatment approach
- Fouling-resistant RO membranes
- Advanced oxidation processes (AOP) integration
Applications
- Cooling tower makeup water
- Boiler feed water preparation
- Process washing and rinsing
Benefits
- Reduces fresh water footprint
- Achieves sustainability goals
- Lower operational costs on raw water sourcing
Specifications
- Recovery rate: 70-95%
- Technologies: UF + RO + UV
- Control: Fully automated PLC/SCADA
