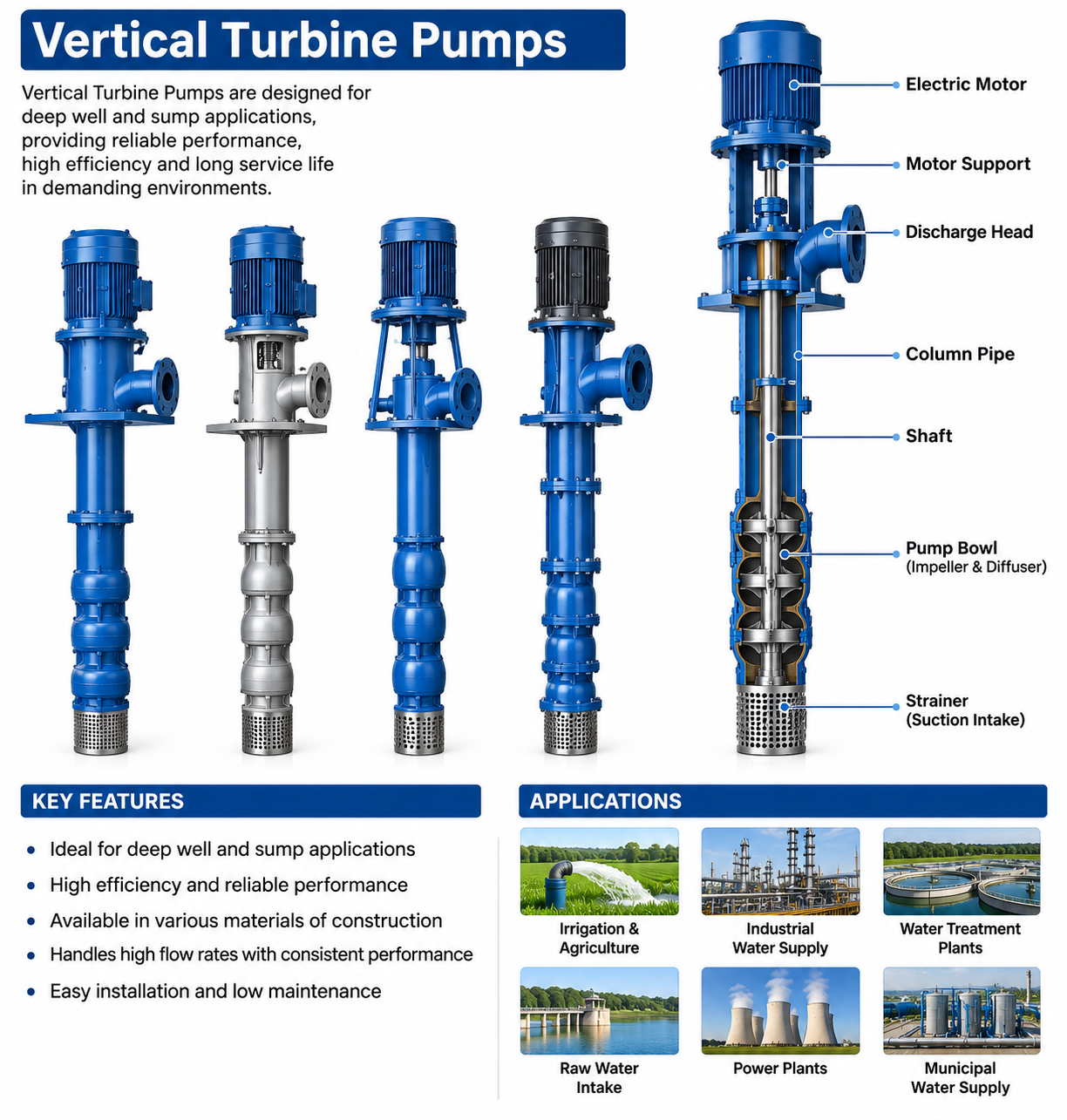

Vertical Turbine Pump
Vertical turbine pumps for deep well, sump, and reservoir applications. Available in various bowl diameters for high head and high capacity water supply.
Key Features
- Multi-stage bowl assembly for high head generation
- Submerged impellers eliminate priming issues
- Line-shaft or submersible motor configurations
Applications
- Municipal water supply and intake stations
- Cooling water circulation in power plants
- Fire protection systems (UL/FM approved)
Benefits
- Space-saving vertical installation
- High hydraulic efficiency reduces energy costs
- Adaptable to varying water levels in sumps
Specifications
- Capacity: Up to 2,500 m3/hr
- Head: Up to 110 meters
- Material: CI / Bronze / Duplex SS

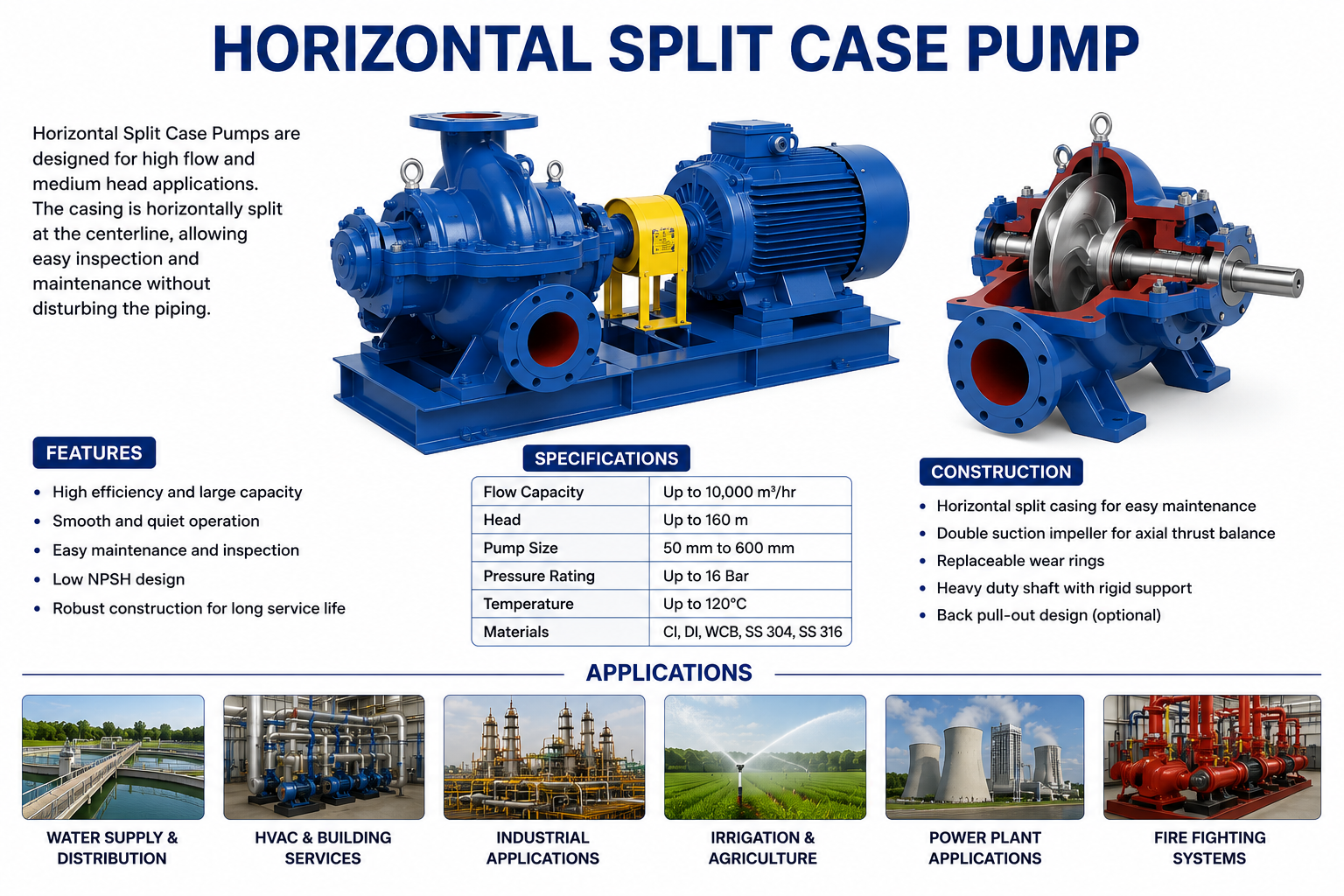

Horizontal Split Case Pump
Horizontal centrifugal split case pumps for general water supply, irrigation, industrial process, and cooling water circulation applications.
Key Features
- Axially split casing for easy maintenance without disturbing piping
- Double suction impeller minimizes axial thrust
- Heavy-duty bearing housings
Applications
- Large-scale irrigation networks
- HVAC chilled and condenser water
- Industrial process water transfer
Benefits
- Longer bearing and seal life due to balanced thrust
- Low NPSHr characteristics
- Easy to open and inspect internals
Specifications
- Capacity: Up to 20,000 m3/hr
- Head: Up to 180 meters
- Speed: 960 / 1450 RPM
End Suction Pump
Close-coupled and base-mounted end suction centrifugal pumps for water supply, fire fighting, irrigation and industrial applications.
Key Features
- Back pull-out design for quick servicing
- Available in both close-coupled (monoblock) and long-coupled
- High-efficiency enclosed impellers
Applications
- Booster pumping stations
- Fire fighting jockey and main pumps
- RO plant feed water
Benefits
- Highly standardized and cost-effective
- Compact footprint (close-coupled)
- Extremely reliable for continuous duty
Specifications
- Capacity: Up to 1200 m3/hr
- Head: Up to 150 meters
- Standard: ISO 2858 / EN 733
Horizontal Multistage Pumps
Horizontal multistage centrifugal pumps for high-pressure applications including RO feed, boiler feed water, and high-rise building water supply.
Key Features
- Ring section multi-stage design
- Diffuser type bowl assemblies
- Gland packing or mechanical seal options
Applications
- High pressure boiler feed
- Reverse Osmosis (RO) high pressure feed
- Mine dewatering
Benefits
- Generates exceptionally high discharge pressures
- Smooth and vibration-free operation
- High operational efficiency across wide curves
Specifications
- Capacity: Up to 850 m3/hr
- Head: Up to 1000 meters
- Max Pressure: 100 Bar

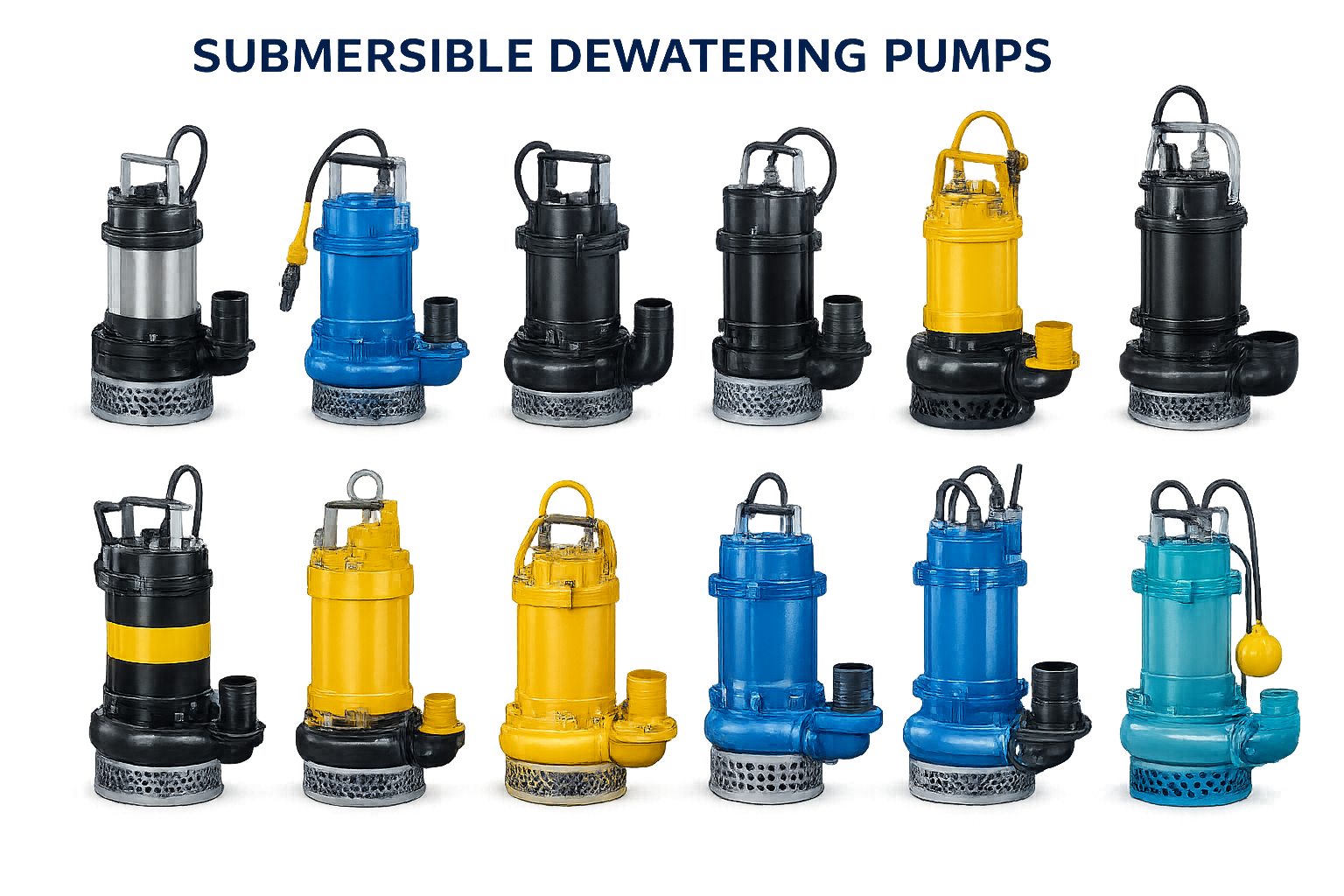

Submersible Dewatering Pumps
Heavy-duty submersible dewatering pumps for construction sites, mines, basements and industrial dewatering. Available in various capacities.
Key Features
- Abrasion-resistant high chrome impellers
- Dual mechanical seals in oil bath
- In-built thermal and moisture sensors
Applications
- Construction site water removal
- Underground mining dewatering
- Stormwater drainage and flood control
Benefits
- Handles dirty water with sand and gravel
- Can run dry for limited periods (with cooling jacket)
- Plug and play portable design
Specifications
- Discharge Size: 50mm to 300mm
- Motor Rating: 1 kW to 110 kW
- Solids Handling: Up to 25mm
Slurry & Sludge Pumps
Heavy-duty slurry pumps for abrasive and corrosive sludge handling in mining, mineral processing, ETP sludge, and dredging applications.
Key Features
- Thick rubber or high-chrome iron liners
- Open or semi-open non-clog impellers
- Expeller (centrifugal) seal or mechanical seal
Applications
- Mineral processing plant tailings
- Coal washing plants
- ETP/STP thickener underflow sludge transfer
Benefits
- Extremely long wear life in highly abrasive duties
- Replaceable wear liners reduce maintenance costs
- Prevents clogging with high solids content
Specifications
- Slurry Density: Up to 1.8 SG
- Solids Size: Up to 100mm
- Hardness: Up to 650 BHN (High Chrome)
