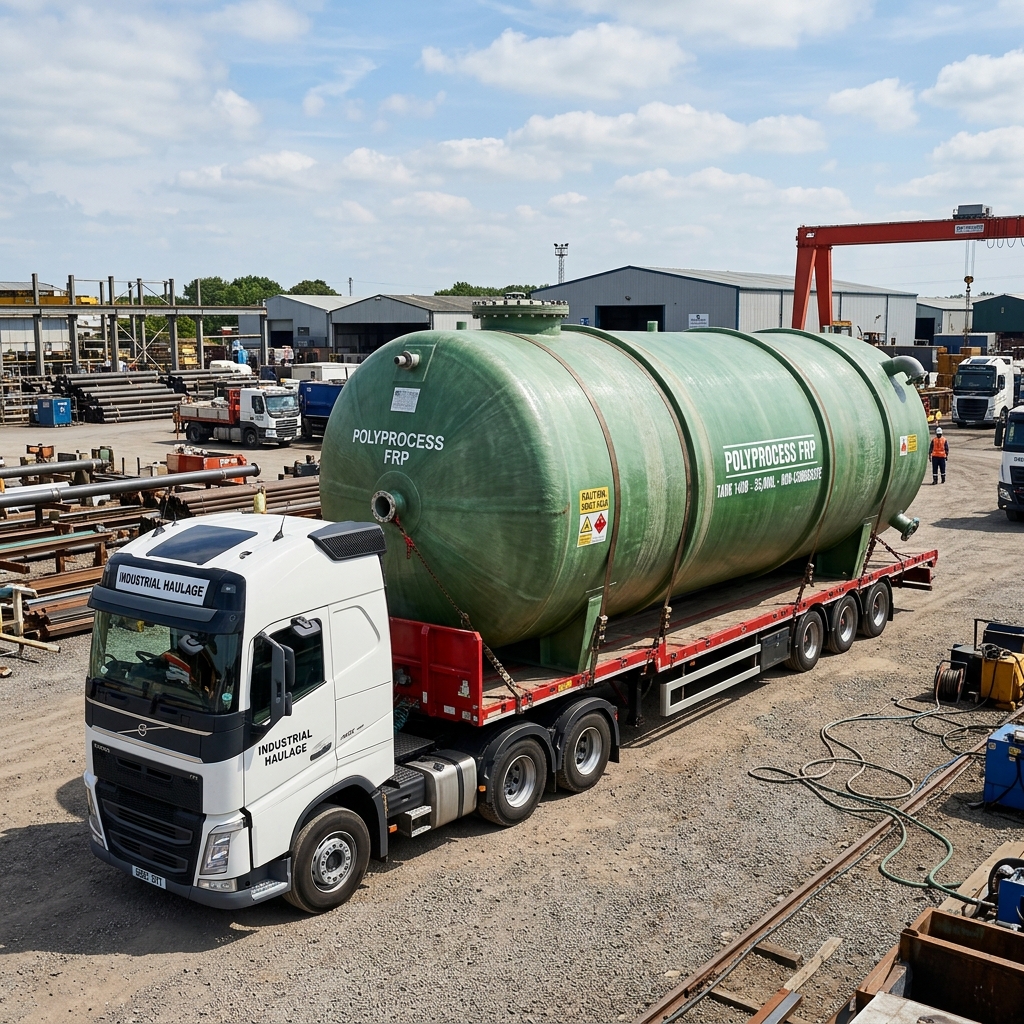

Custom PP FRP Products
High-quality, corrosion-resistant, and customized PP (Polypropylene) and FRP (Fiberglass Reinforced Plastic) fabrications for industrial applications.
Key Features
- Dual-laminate construction (Thermoplastic inner shell + FRP outer shell)
- Seamless welding using hot gas extrusion
- Custom molded structural shapes and profiles
Applications
- Chemical processing plant equipment
- Pickling tanks for steel galvanizing
- Fume scrubbers and exhaust ducting
Benefits
- Combines the chemical resistance of PP with the structural strength of FRP
- Lightweight compared to metallic equivalents
- Zero rust and maintenance-free lifespan
Specifications
- Temperature Resistance: Up to 110°C (PP-H)
- Thickness: As per BS 4994 standards
- Resin Types: Isophthalic / Vinyl Ester

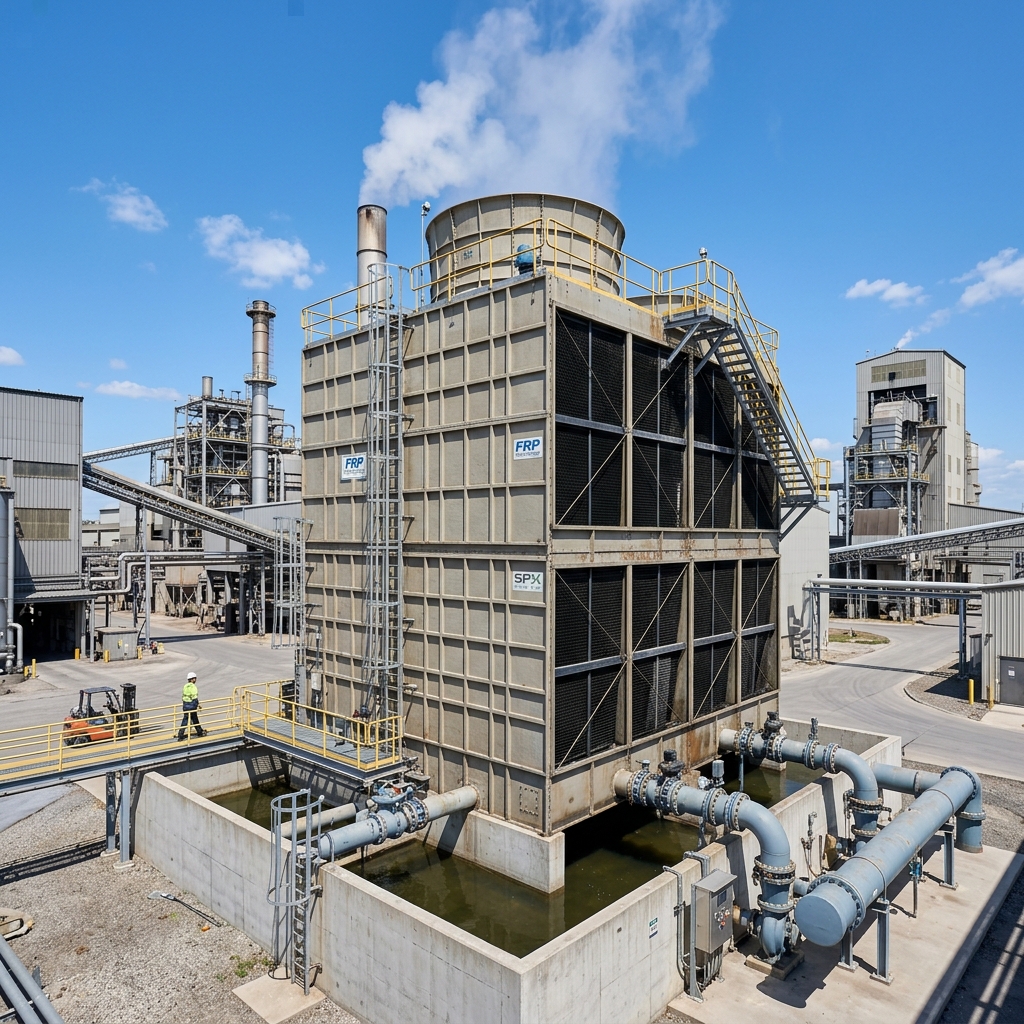

FRP Cooling Towers
Lightweight, durable, and engineered for high efficiency in heat dissipation. Ideal for HVAC and industrial process cooling.
Key Features
- Bottle (round) and Square type counter-flow designs
- UV stabilized FRP casing and basin
- High-efficiency PVC honey-comb fills
Applications
- Induction furnace cooling
- Plastic injection molding machines
- HVAC chiller condenser water cooling
Benefits
- Compact footprint requires less installation space
- Low fan motor power consumption
- Highly resistant to algae growth and water corrosion
Specifications
- Cooling Capacity: 10 TR to 1000 TR
- Water Flow Rate: 5 m3/hr to 500 m3/hr
- Fan Type: Cast Aluminum / FRP Axial

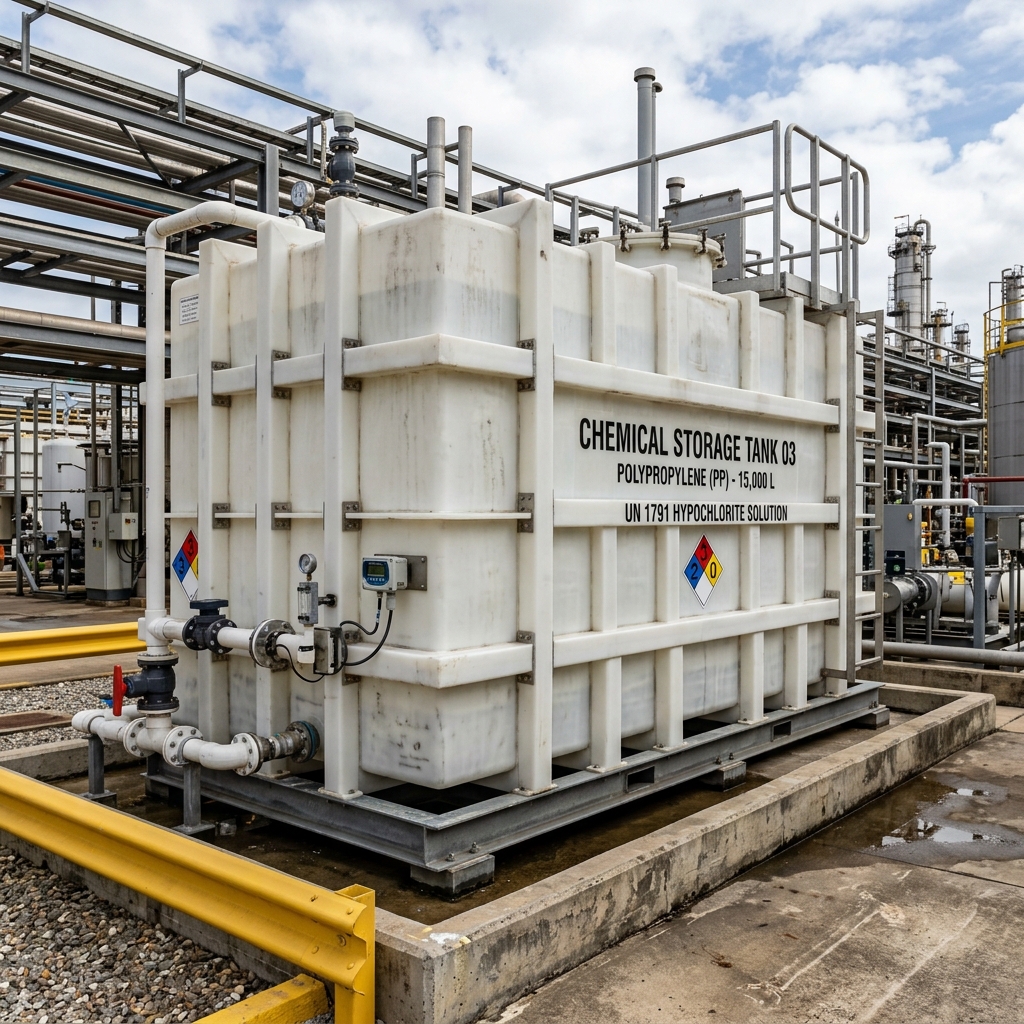

PP Chemical Tanks
Excellent chemical resistance and strength for storing a variety of highly corrosive liquids and chemicals safely.
Key Features
- 100% pure virgin Polypropylene sheets (PP-H/PP-C)
- Butt fusion welded joints for leak-proof performance
- Flat bottom, conical bottom, or dished end designs
Applications
- Storage of strong acids (HCl, H2SO4) and alkalis
- Electroplating and anodizing bath tanks
- Water and wastewater dosing tanks
Benefits
- Eliminates the risk of catastrophic chemical leaks
- Translucent material allows for easy visual level checking
- Highly impact resistant
Specifications
- Capacity: 50 Liters to 20,000 Liters
- Max Temperature: 90°C
- Accessories: Level indicators, Nozzles, Manholes

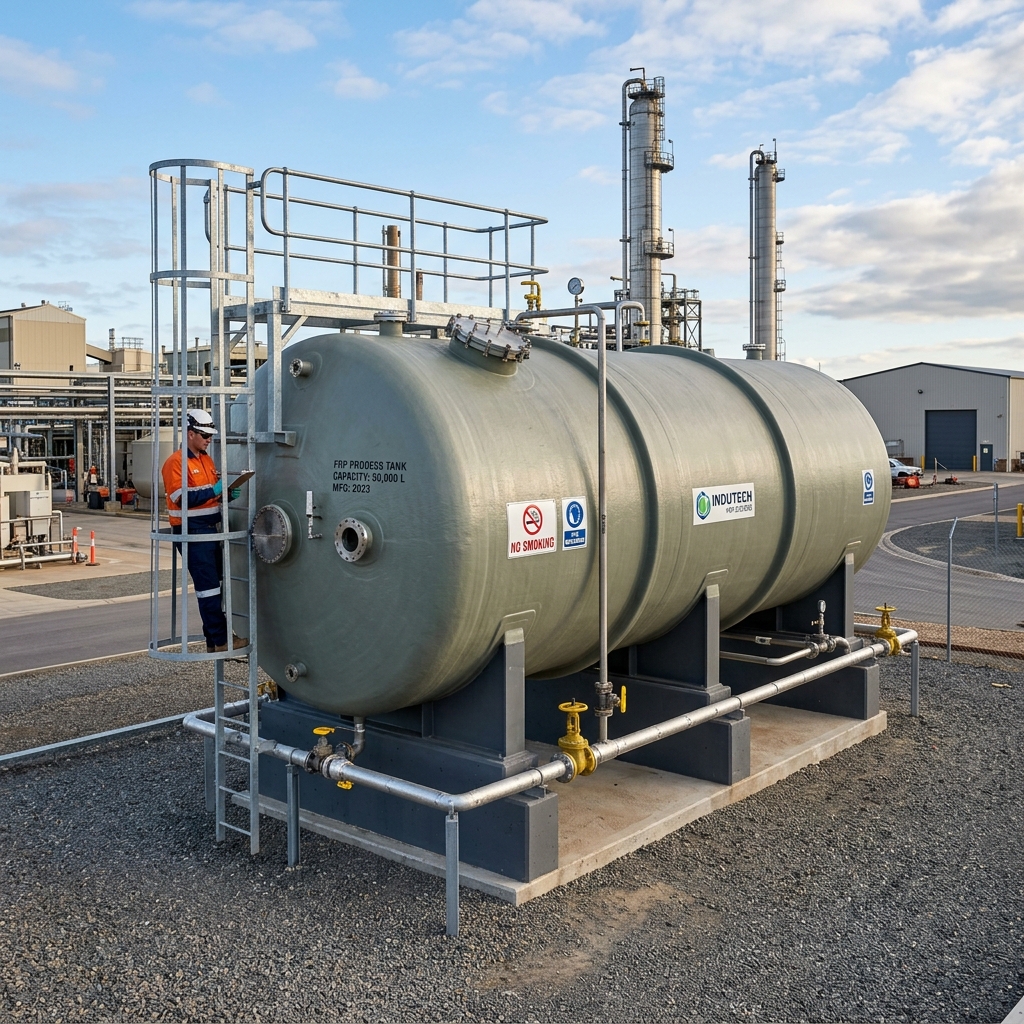

Industrial Storage Tanks
Engineered for high durability and safe large-scale storage in industrial, water treatment, and chemical applications.
Key Features
- Filament wound or hand lay-up FRP construction
- Horizontal or vertical cylindrical orientations
- Insulated or double-wall configurations available
Applications
- Bulk DM water and RO water storage
- Food grade liquid storage (with specific resins)
- Petrochemical and solvent storage
Benefits
- Cost-effective alternative to stainless steel (SS316)
- Extremely high strength-to-weight ratio
- Smooth inner surface prevents microbial growth
Specifications
- Capacity: Up to 100,000 Liters
- Design Standard: BS 4994 / ASME RTP-1
- Resin: Chemical resistant grade

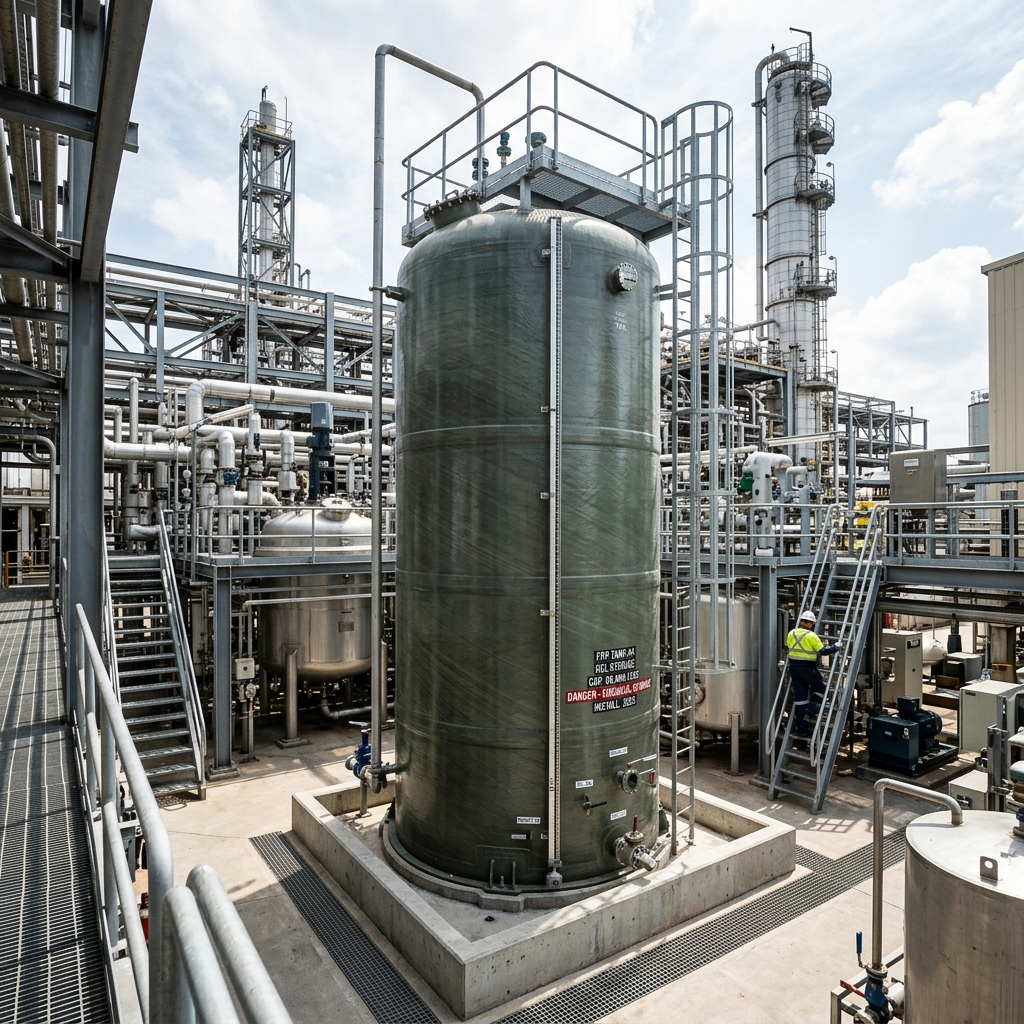

FRP Pressure Vessels
Lightweight yet strong FRP pressure vessels with excellent corrosion resistance for chemical dosing, water filtration, and softening.
Key Features
- Seamless PE/FRP inner shell with continuous fiberglass roving
- Top and bottom threaded or flanged openings
- 100% factory pressure tested
Applications
- Multimedia sand and carbon filters
- Ion exchange water softeners
- Mixed bed (MB) demineralization plants
Benefits
- Will never rust or degrade in wet environments
- Requires no internal epoxy coating
- Easy to handle and install due to light weight
Specifications
- Operating Pressure: Up to 150 PSI (10 Bar)
- Diameter: 8" to 63"
- Operating Temp: 1°C to 49°C

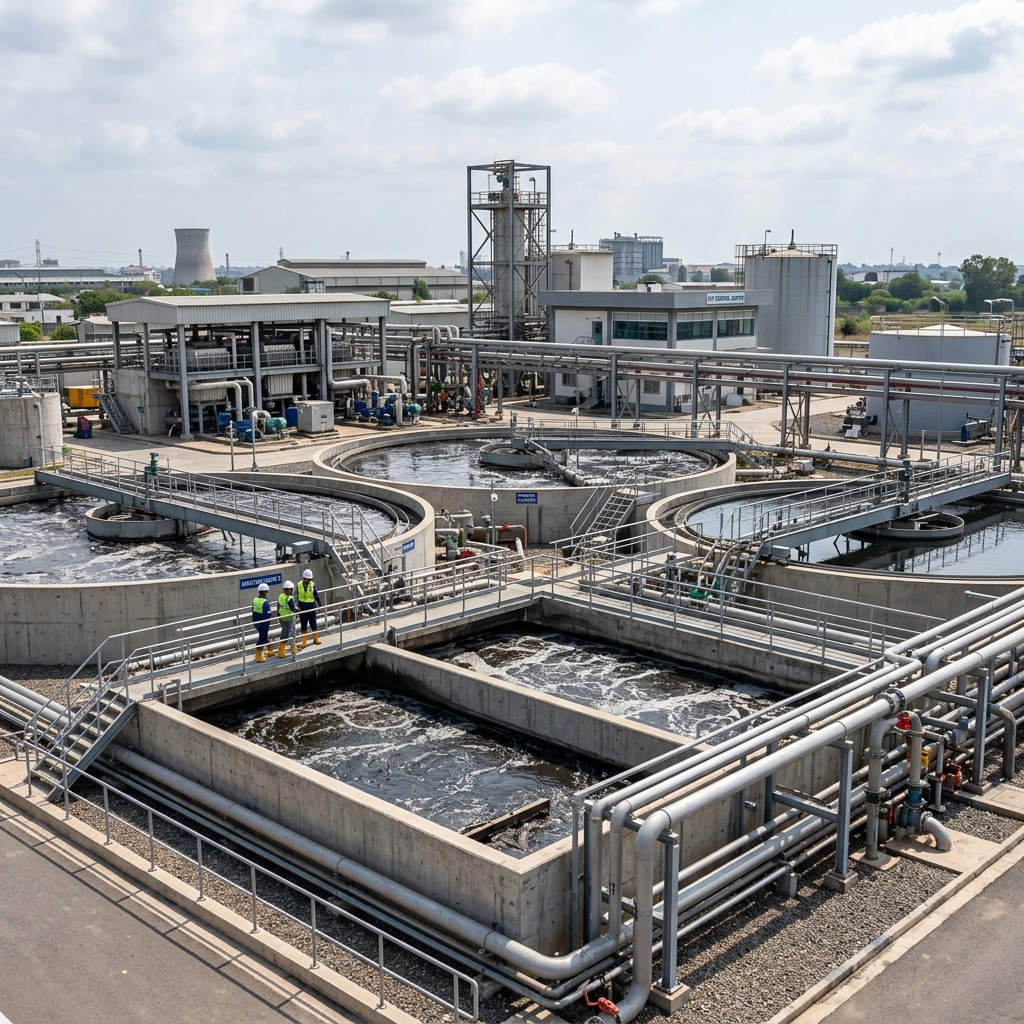

Compact Effluent Treatment Plant
Advanced packaged solutions in FRP/PP for efficient treatment of industrial wastewater with minimal civil work.
Key Features
- Prefabricated FRP skid-mounted ETP units
- Integrated mixing, flocculation, and settling zones
- Corrosion-proof biological reactors
Applications
- Small to medium scale textile/dyeing units
- Electroplating wash water treatment
- Automobile service station effluent
Benefits
- Plug-and-play installation saves time on site
- Can be easily relocated if the factory shifts
- Aesthetically pleasing clean design
Specifications
- Capacity: 5 KLD to 100 KLD
- Material: Epoxy coated MS / FRP lined
- Process: Physico-Chemical / MBBR

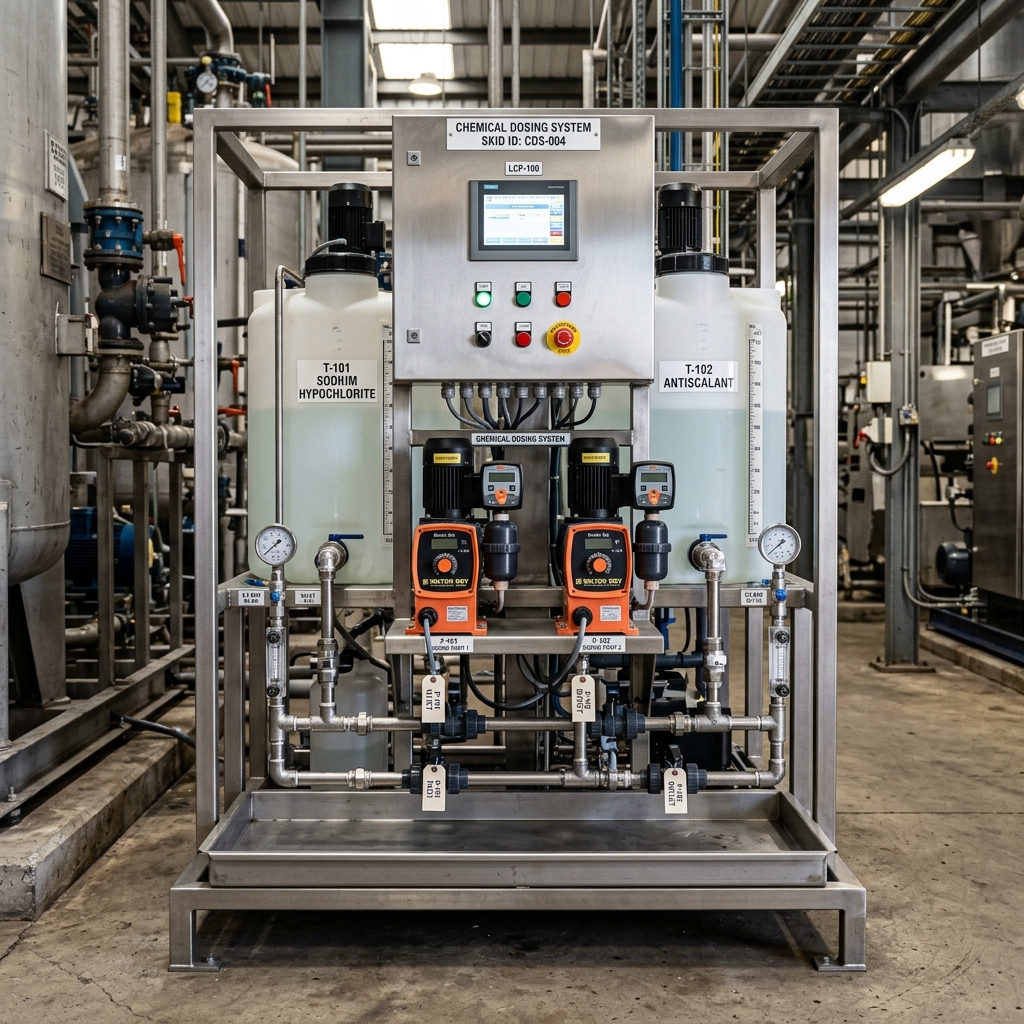

Chemical Dosing Systems
Skid-mounted systems for accurate dosing and treatment of chemicals in water, boiler, and cooling tower applications.
Key Features
- Complete skid with PP tank, metering pump, and stirrer
- Automated dosing based on pH/ORP/Conductivity sensors
- Calibration pots and pressure relief valves included
Applications
- Coagulant (Alum/PAC) dosing in clarifiers
- Antiscalant dosing in RO plants
- Chlorine dosing for water disinfection
Benefits
- Ensures highly precise chemical injection
- Prevents chemical spillage and operator exposure
- Ready-to-use factory-tested assembly
Specifications
- Tank Volume: 50L to 1000L
- Pump Capacity: 1 LPH to 1000 LPH
- Material: PP / PVDF / PTFE wetted parts

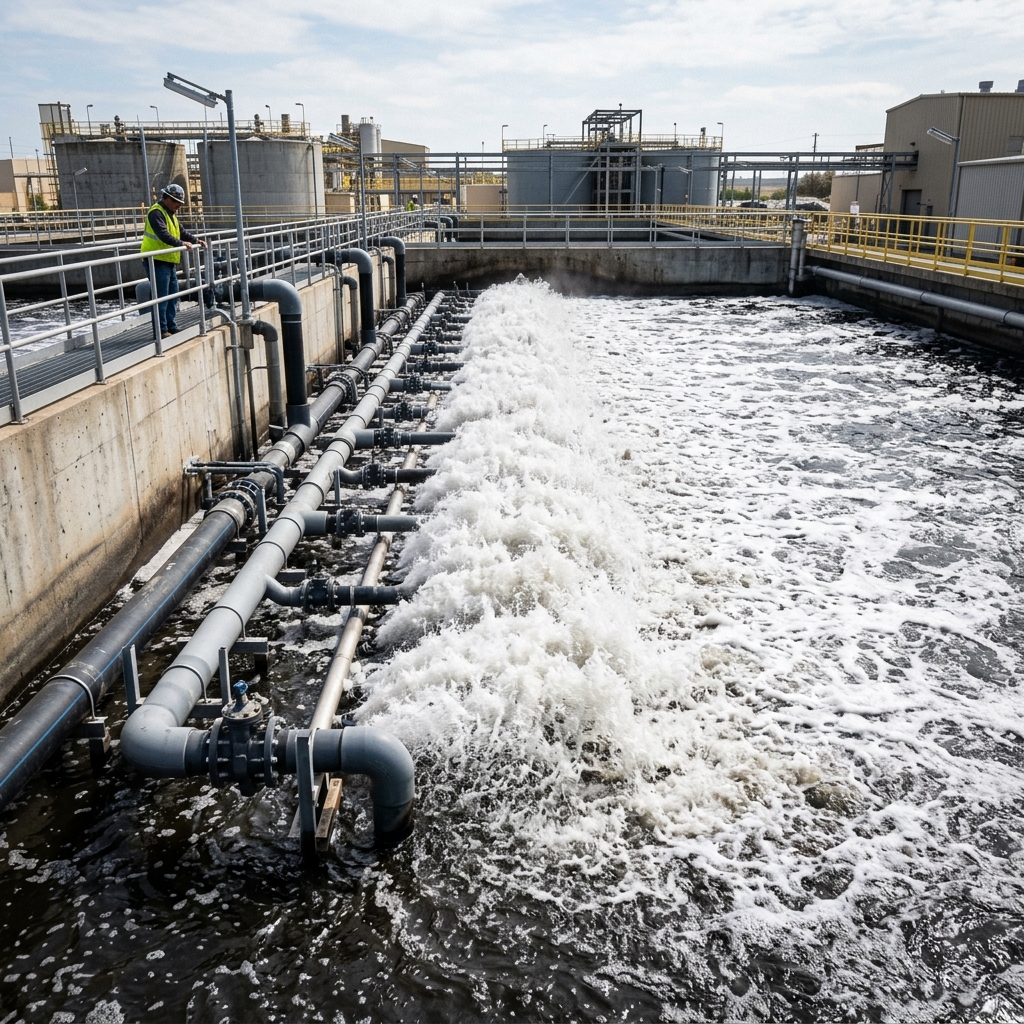

Aeration & Diffuser Systems
Fine bubble diffusers and aeration grids for better oxygen transfer and biological treatment efficiency in STP/ETP.
Key Features
- EPDM / Silicone membrane fine bubble diffusers
- Tubular or Disc type configurations
- UPVC/CPVC/SS air distribution piping grids
Applications
- Aeration tanks in sewage treatment plants (STP)
- Biological oxidation in effluent treatment (ETP)
- Aquaculture pond aeration
Benefits
- High Standard Oxygen Transfer Efficiency (SOTE)
- Non-clogging membrane slits
- Significantly reduces blower power consumption
Specifications
- Disc Size: 8", 9", 12"
- Air Flow: 2 to 12 m3/hr per diffuser
- Membrane Life: 5+ years
